Photo chemical etching, also known as chemical etching or metal etching, is a fascinating process used to create intricate designs and patterns on metal surfaces. This method uses a corrosive substance, typically an acid or chemical etchant, to precisely remove material from specific areas of the metal, resulting in detailed and complex designs.
Chemical etching process step by step
Step 1 Choosing Materials
Chemical etching can apply almost any sheet metals, such as stainless steeel, copper, nickle, aluminum, tatinum, alloy ect. Choose the material according to customer’s requests.

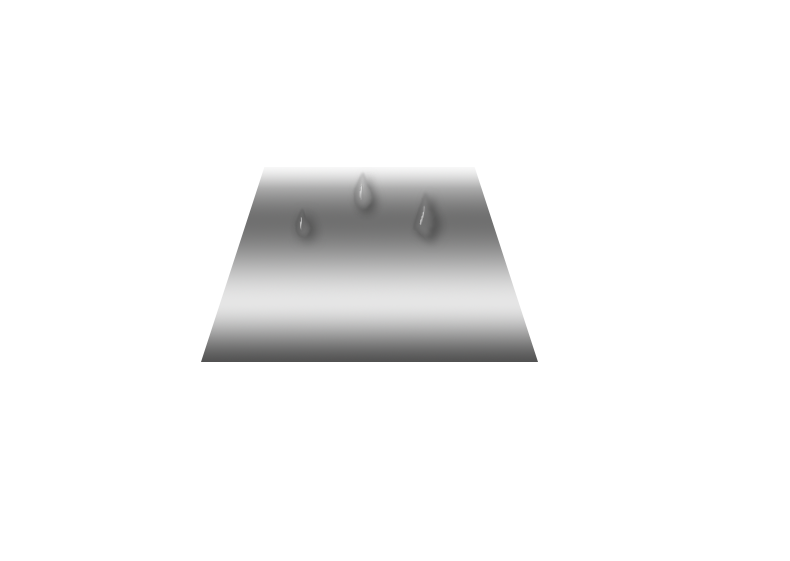

Step 2 Cleaning
The metal surface is thoroughly cleaned to remove any impurities, which ensures that the photoresist adheres properly. This step is crucial as any contaminants can affect the adhesion of the photoresist, leading to defects in the etching process. A clean surface also ensures that the etching process proceeds evenly, preventing any unintended variations in the pattern.

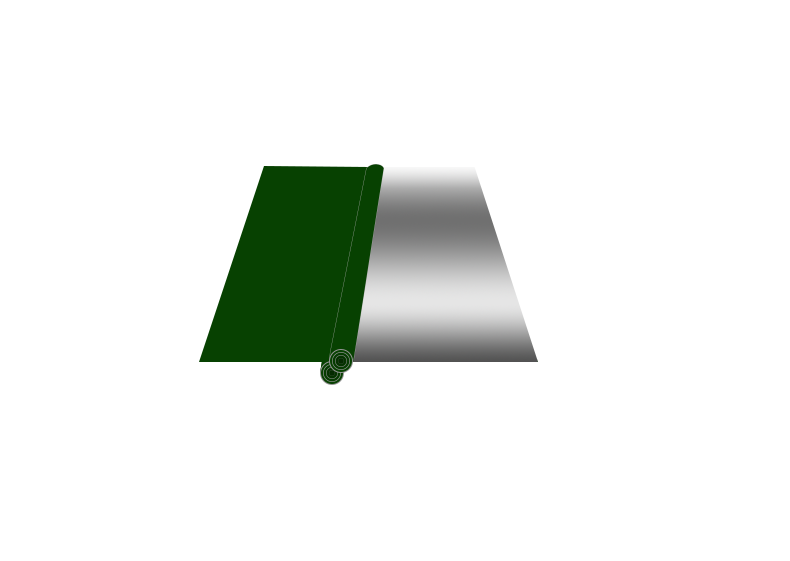

Step 3 Screen printing
A light-sensitive photoresist material is applied to the metal surface. This material will protect the areas of the metal that should not be etched away. The application of the photoresist must be uniform to ensure consistent protection across the surface, which is vital for achieving the desired pattern accuracy. The thickness of the photoresist layer can be adjusted to control the depth of the etch, providing flexibility in the final design.

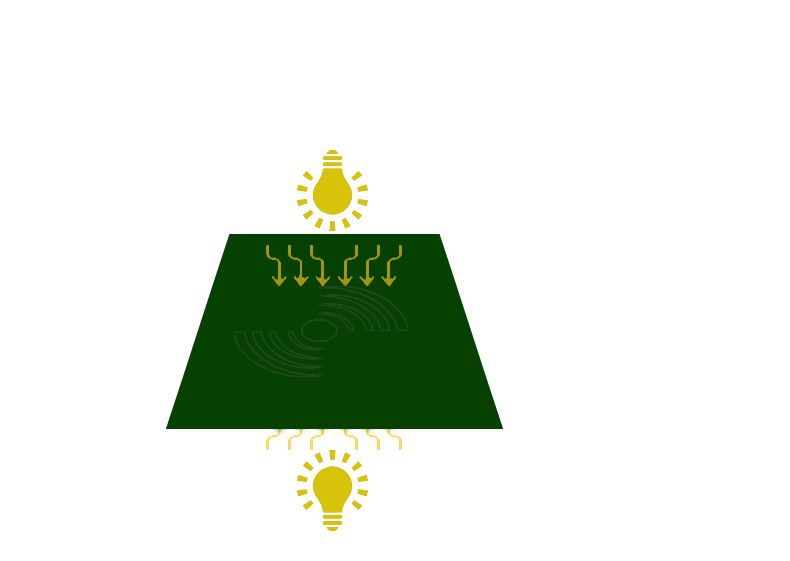

Step 4 Exposing
The metal is exposed to ultraviolet (UV) light through a photomask. The photomask has transparent and opaque areas that define the design to be etched. The exposure to UV light causes chemical changes in the photoresist, hardening it in the exposed areas and making it resistant to the etchant. This selective hardening is what allows for precise patterning of the metal surface.

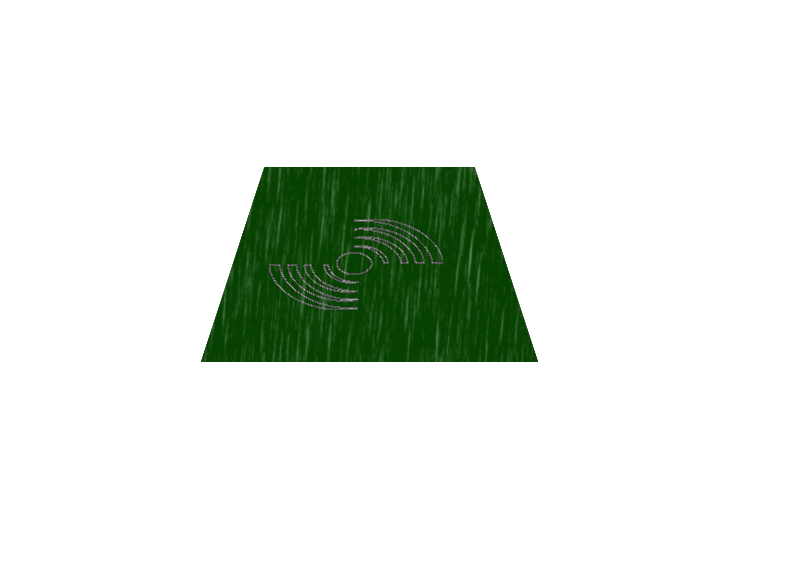

Developing 5
The exposed photoresist is developed, removing the unexposed areas and revealing the metal beneath. This step is critical as it determines the accuracy of the pattern that will be etched. The development process must be carefully controlled to ensure that only the intended areas are removed, maintaining the integrity of the design.

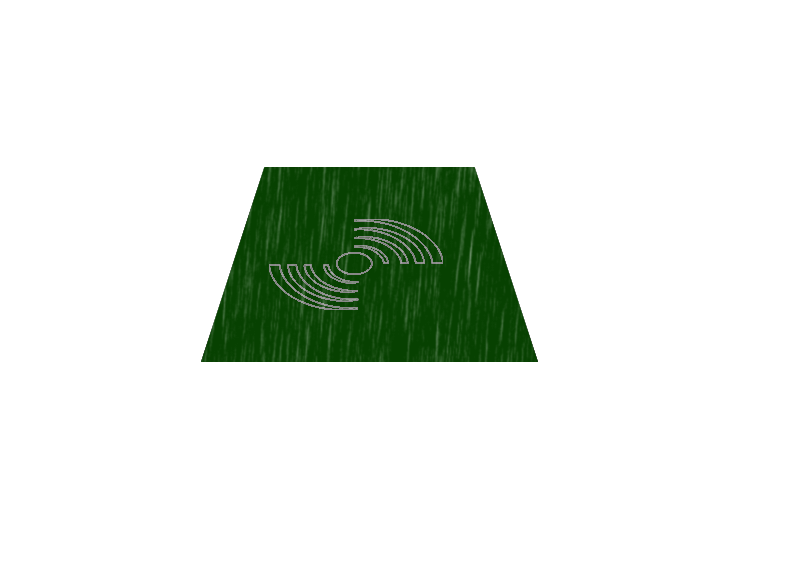

Step 6 Etching
The metal is then immersed in a chemical etchant that dissolves the unprotected areas, leaving behind the desired pattern. The choice of etchant depends on the type of metal being etched and the required precision. The etching time must be monitored closely to achieve the correct depth and detail without over-etching, which could damage the design.

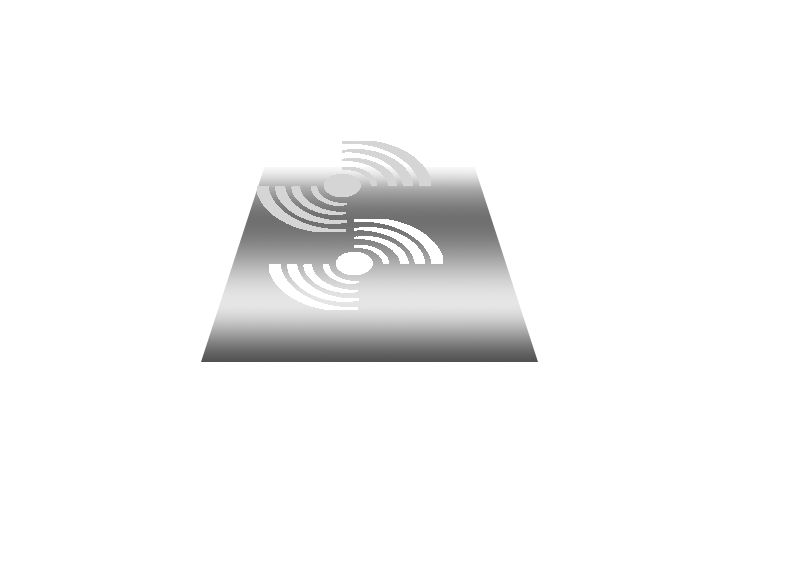

Step 7 Stripping
After etching, the remaining photoresist is removed, and the metal is cleaned to reveal the final etched design. This step ensures that the metal surface is free from any residues that could affect its appearance or function. The final cleaning is essential for presenting the finished product in its best form, with clear and precise patterns.
Step 8 Measuring
Use image measuring instrument to check the appearance and dimension.
Step 9 Finishing
The resulting part may undergo additional finishing steps such as deburring, cleaning, and surface treatment to achieve the desired final properties and appearance.
Photo chemical etching is widely used in various industries due to its precision and ability to produce complex designs.
The process allows for high precision and accuracy, making it possible to create intricate designs with tight tolerances. This is particularly important in industries where precision is critical, such as electronics and medical devices. The ability to produce consistent and repeatable results ensures that components meet stringent quality standards, reducing the risk of defects and failures in final products. Precision in etching also facilitates innovation, allowing designers to push the boundaries of what is possible in component design.
